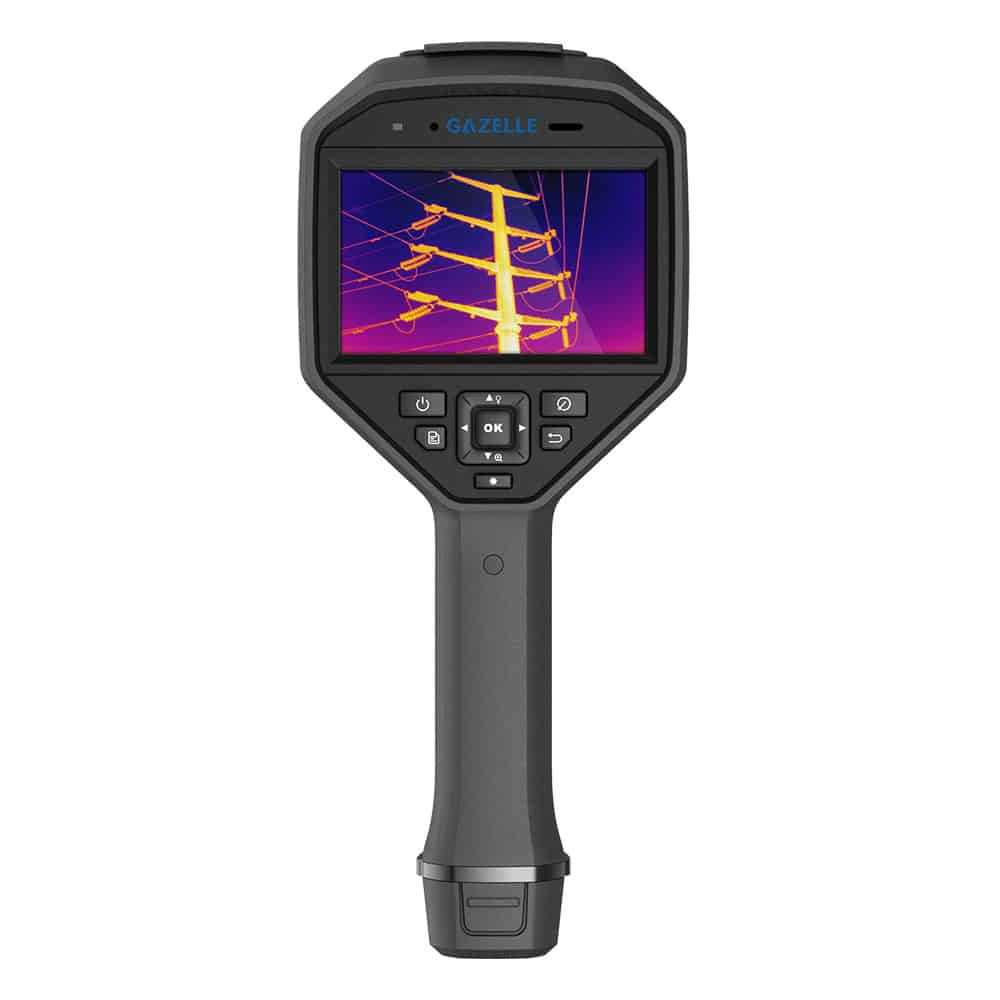

G9706 Advanced Thermal Imager, 640x512p
G9706 Advanced Thermal Imager, 640x512p
Features
- Thermal resolution: 640 x 512 (327 680 pixels)
- NETD: < 35 mK (@ 25 °C, F#=1.0)
- Temperature measurement range: -20 °C to 650 °C (-4 °F to 1202 °F)
- Accuracy: Max (±2 °C/3.6 °F, ±2%)
- Measurement presets: Center spot, Hot spot, Cold spot, User Preset Point/Line/Area
- Auto/Manual/Laser focus
- 50 Hz image frequency
- 4.3” LCD touch screen display
- 8 MP optical camera
- Up to 4 hours continuous running
- 1 year warranty against manufacturing defect only

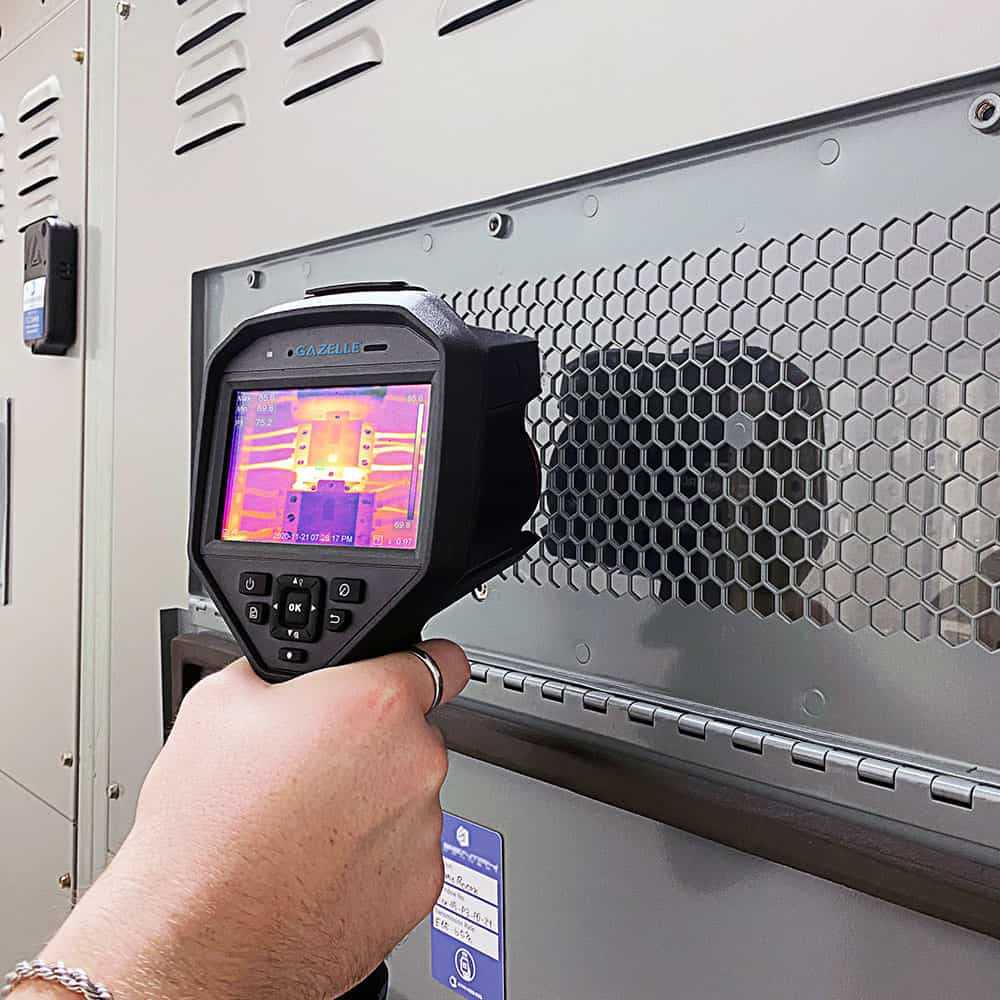

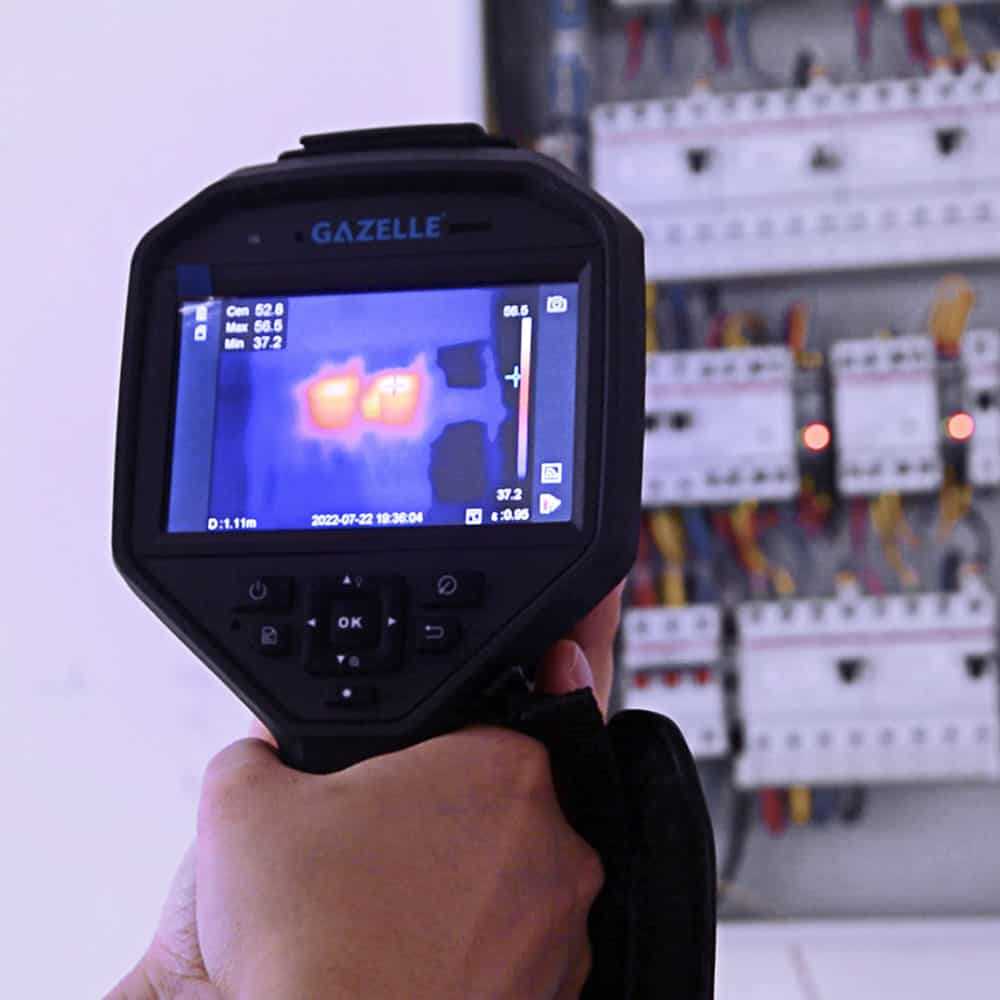

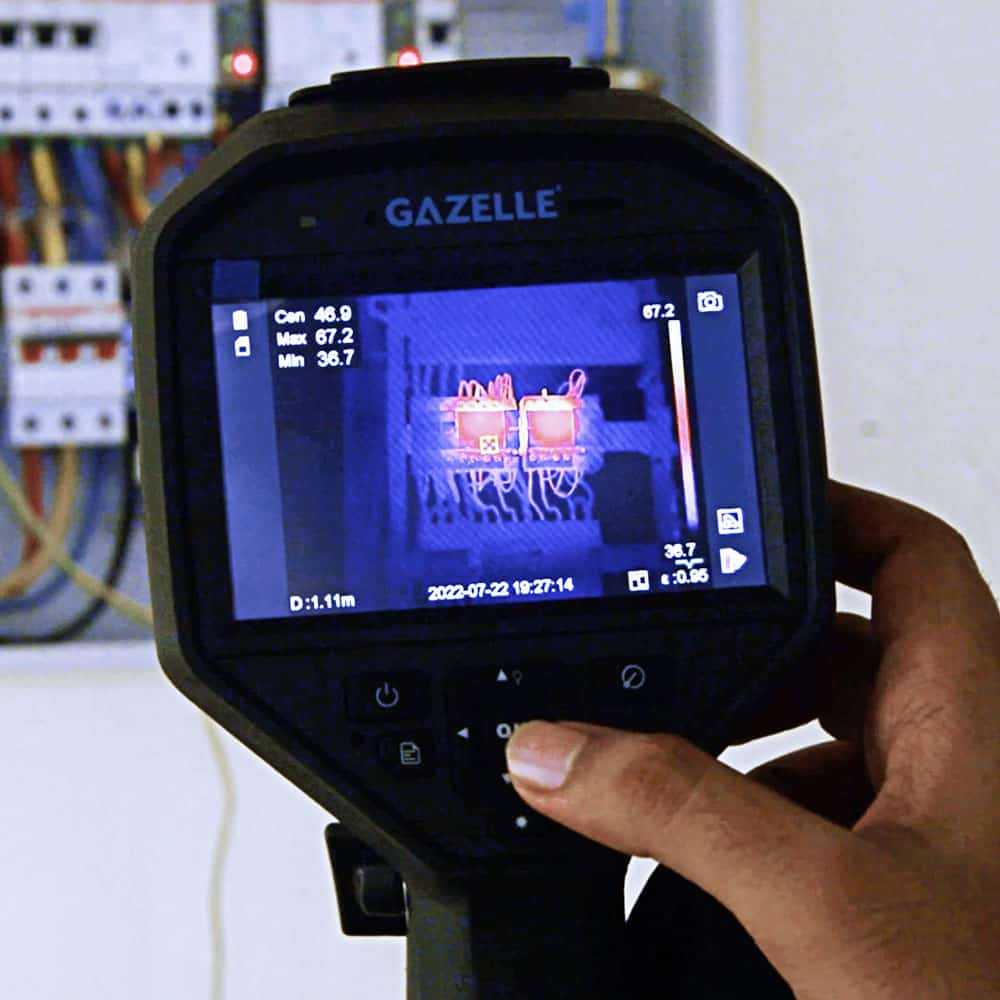

The GAZELLE G9706 Advanced Thermal Imager is packed with the high-performance features needed for fast and accurate surveying of high-voltage, hazardous targets, to safely and quickly diagnose hotspots that could lead to electrical and mechanical failures. If you are new to thermal imaging or if your camera is being used by a team with varying levels of thermal imaging experience, the G9706 offers a unique combination of 640 x 512 thermal resolution and field of view that allows even a novice thermographer to capture crisp and vibrant images and diagnose critical issues before they lead to system failures. Equipped with both manual and autofocus, you can target areas as close as 6in, or focus on larger areas from a greater distance. With temperature measurements up to 650°C, it helps quickly and accurately identify temperature problems in most industrial environments. The intuitive touch screen visual interface allows you to easily navigate the device and diagnose issues with sharper onscreen images, thanks to the 800 x 480 screen resolution. The G9706 also comes with an optional interchangeable lens covering the complete coverage of near and distant targets with 0.5x wide angle, as well as 2x and 3x zoom options.
Technical Specifications
Items Included
- Quick Start Guide (x1)
- Type-C Cable (x1)
- Hand Strap (x1)
- CVBS Cable (x1)
- Charging Base (x1)
- Battery (x2)
- Micro SD Card (x1)
- Box (x1)
- Tools Package (x1)
- Charger (x1)
- Lens Cover (x1)
Software
Packaging Info
- Width26 cm
- Length51 cm
- Height26 cm
- Weight5.8 kg
- Temperature Range-20 to 650°C
- IR Resolution640x512 pixels
- Image SensorVanadium Oxide Uncooled Focal Plane Arrays
- Pixel Pitch17µm
- Field of View25°x19°
- Focal Length25mm
- Spatial Resolution (IFOV)0.68mrad
- ApertureF1.1
- Image Frequency50Hz
