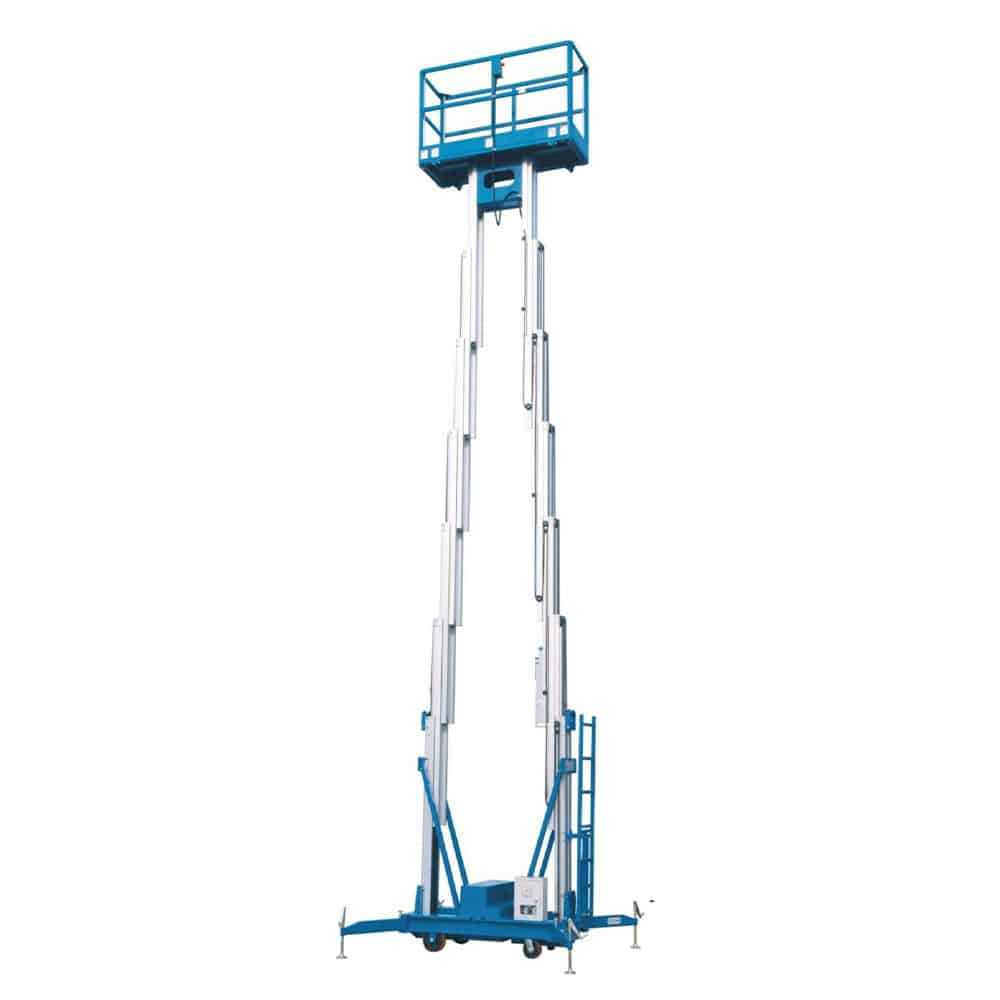

G2512 12m Aerial Work Platform
G2512 12m Aerial Work Platform
Features
- Rigid aluminium alloy profile
- Suitable for operation by a single worker
- Fitted with Italian hydraulic systems
- Equipped with anti-explosion valve for lube
- Easily rolls through a narrow space
- Auxiliary platform lowering
- Overload protection
- Emergency stop button
- Expandable legs for better stability
- DC working power on the platform
- 1 year manufacturer's warranty

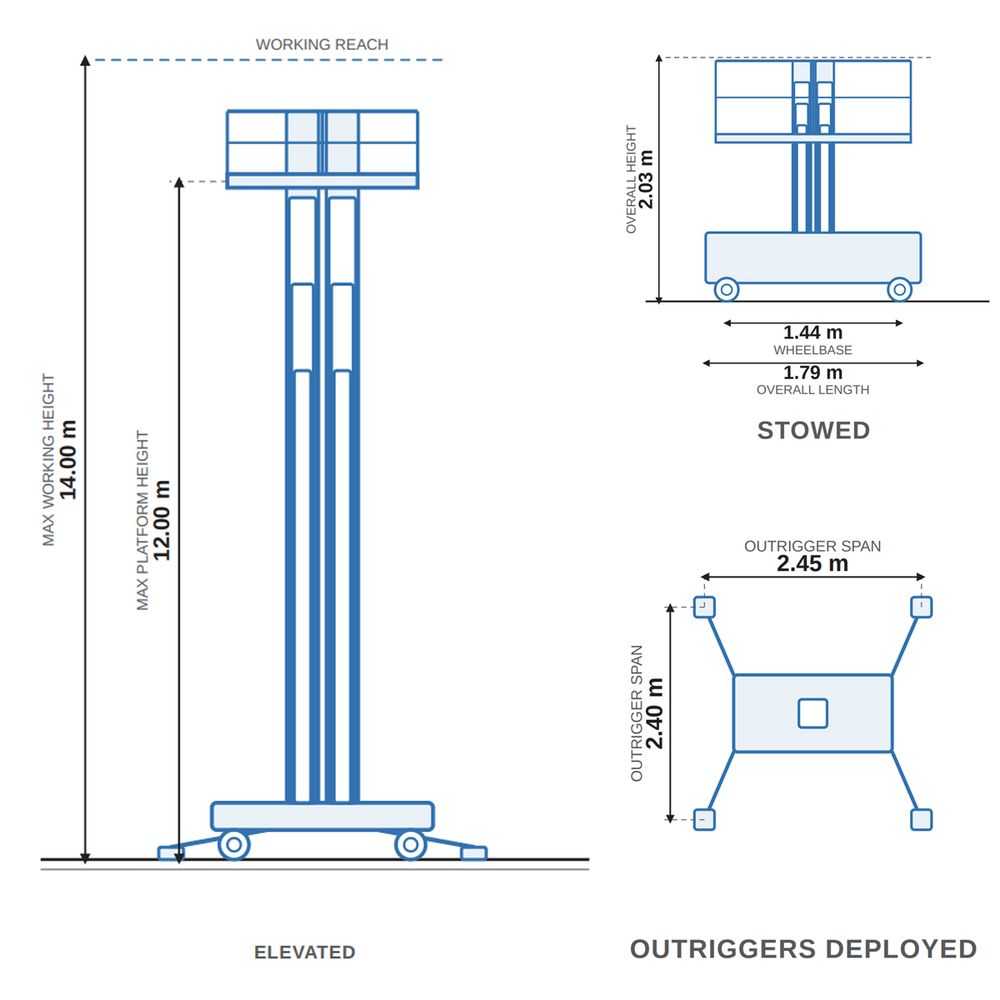

Technical Specifications
Load Capacity200kg
Max Platform Height12m
Working Height13.7m
Platform Size1.4x0.88m
Support Leg Expand2.45x2.4m
Ground Clearance80mm
Overall Size (LxWxH)1.75x0.8x2.0m
Voltage (AC)220V
Voltage (DC)24V
Weight780kg
Downloads
Packaging Info
- Width80 cm
- Length175 cm
- Height200 cm
- Weight810 kg
- Load Capacity200kg
- Max Platform Height12m
- Working Height13.7m
- Platform Size1.4x0.88m
- Support Leg Expand2.45x2.4m
- Ground Clearance80mm
- Overall Size (LxWxH)1.75x0.8x2.0m
- Voltage (AC)220V
- Voltage (DC)24V
- Weight780kg
